Sunday, June 10, 2012

Cold nitric acid experiments

70 % vs RFNA

As a sort of control I wanted to see if letting a chip in 70% does anything.  I'm not sure where these pictures went but the answer is no, not really.  I could still read the label on the 70% chip although the pins weren't visible anymore.

WFNA vs RFNA

H2SO4 is dirt cheap for me to get where as nitric tends to be expensive to the point where I actually distill my RFNA / WFNA.  I was distilling RFNA before but using it sparingly since it took a bit of work.  I've since realized that I can make WFNA much easier as the vacuum distillation is quite quick.  In fact, I did an experiment on some old (for emphasis, it may have decayed making this an unfair comparison) RFNA vs some new WFNA on the same chip which I let sit for 90 minutes cold.  Our prisoner assistant:


Each one was given 5 mL of acid and let sit for 90 minutes covered.  First look:


After washing (WFNA left, RFNA right):





Close up of the WFNA chip:


which even has some undercut (peeling from drying?) where as the RFNA was solid.

It seems that the fresh WFNA did a lot of damage where as the RFNA only did a little damage.  However, much close to when I freshly made the RFNA, I stored some in a polypropylene vial and it was severely eaten overnight where as I haven't noticed any degradation storing WFNA in the same vials.  Note that storing strong oxidizing mixtures in plastic vials isn't probably a good idea but it makes ultrasonically cleaning chips easier with what I have on hand.  I've been meaning to order some small PFA tubes but haven't gotten around to it.  Anyway, I wouldn't say that this is conclusive but my feeling is that at it is likely demonstrating that nitric decomposes significantly over time and should be used fresh.  Next time I make a batch of acid I'll make a batch of each and do a fresh comparison.

WFNA and H2SO4


The next thing I was curious about was that if H2SO4 could be used to enhance nitric acid cold.  I've noticed that nitric rapidly decreases in usefulness on epoxy with decreasing concentration.  My hope is that if I could dehydrate it with something it could prolong its life.  I've tried soaking some chips in cold H2SO4 and haven't seen any effects.  I've read that concentrated H2SO4 should cause the epoxy to swell but for one reason or another I haven't observed that (mines 98%, maybe not dry enough?).

Our victims subjects:


2 Actel A1020B FPGAs selected for no particular reason other than that I had two of them.  I stripped off the outside pins from both before adding acid.  I added 3 mL WFNA in a PTFE beaker (an eBay seller had a bunch 3 for $5 so I bought a bunch of them) with a watchglass on top to one and 3 mL WFNA + 3 mL 98% H2SO4 to a PTFE beaker with a watchglass on top to the other.  This volume let both chips be completely covered at least at the start.  5 mL may have been a little better  I let them sit overnight, maybe 15 hours total.

WFNA

The WFNA initially etched very quickly as the solution turned dark after just a few minutes. The next day there was a lot of NO2 trapped:



Letting it air out:






Removing the acid:


Wash in water + ultrasonic clean in acetone:


The chip is only barely etched, maybe about 10% of the height (I didn't weigh them, maybe should have).  The Actel logo is even still a little visible above.  My first thought is that it may have spent most of its acid on the pins but there is exposed copper (after cleaning) at about the same level as the plastic package.

WFNA + H2SO4

This etched much slower than the WFNA.  In the few minutes after adding the chip where as the WFNA had turned very dark this was only tinted.  Letting it sit overnight had some NO2 but not nearly as much as the WFNA:


Draining the acid off:

A bit odd shaped.  The other side makes it look sorta like a rock:
Maybe this is what the H2SO4 swelling is suppose to look like.  It seems odd though that I wasn't able to observe it until diluting with another acid.  After cleaning it looked like this:


I'd say about 40% removal of the epoxy by height.

Conclusions

 Here are the washed + ultrasonically cleaned chips side by side (WFNA left, WFNA + H2SO4 right):


The WFNA chip turned red again but the other one didn't.  Presumably this is from acid residue and it would stay dark if I washed it more thoroughly.  Overall the WFNA + H2SO4 did pretty good.  It was slower but did well overall.  It had to be cleaned to figure out how far it actually etched (you can still read the Actel logo on it above!).  My guess is that the main reason it did better is because it didn't have to eat through the copper.  Failure analysis books recommend 10% H2SO4 + 90 % RFNA to passivate.  I'd have to do such a comparison to figure out if the excess H2SO4 did anything or if it simply helped by passivating the copper.  However, based on the swelling which I've never seen before, I'm going to guess that it had other beneficial effects.

The only thing that I was a bit hesitant about is that this is a very strong nitrating mixture.  MSDS say that nitric is incompatible with alcohols and acetone.  My experience has been that alcohols should be strongly avoided and that acetone is only a problem at higher temperatures.  However, I tried to mix a drop of each and it reacted violently instantly cold.  So in conclusion: this may be a good way to prolong acid when you are patient but the mixture must be treated with care.

For next time

I'm working on a teardown of a 24C02 EEPROM.  See top metal here: http://siliconpr0n.org/map/st/24c02__ns50xu/

Thursday, May 24, 2012

Interactive basic logic chip teardown


http://siliconpr0n.org/wiki/doku.php?id=quiz:metal_gate_cmos

When I first started I wanted to dissect a basic logic chip but the ones I looked at had funny power transistors and so didn't work well for getting my feet wet.  However, there are plenty that do use more standard MOSFETs and so here's one such chip presented as an interactive quiz.  Each quiz goes increasingly deeper into the chip and ends with explanations so that you can move onto the next level.  Its designed to either test yourself or as a learning exercise.  If you don't know the answers just make a best guess and you should get enough info at the scoring page to move onto the next quiz.  Enjoy!

Sunday, March 4, 2012

SiDoku #1

Flylogic gave a brief tutorial and a logic chip at http://www.flylogic.net/blog/?p=32 I have been messing with a standard cell based chip recently and this is one of the more complicated cells from it. In their spirit, here is a similar challenge.

Top metal (M1 and M2 visible):
Delayered:

Active area:

The two delayered images are "identical" but have different artifacts. I gave both since its what I used and it helps a little to piece things together. If you are the first to solve it and are interested I'll see if I can post at least a top metal photograph of a chip of your choosing. Get the chip to me somehow or if its something relatively common I might have it hoarded somewhere. Solving this means 1) giving a high level description of the functionality of the device and 2) A gate level schematic (ie with and gates etc where possible instead of transistors) with pins labeled to the M2 contacts

Hint: the two bridged contacts on the top metal (M2) are part of the cell and can assumed to be connected.

I'll release the solution in a week or two if no-one gets it. Some more resources to help including an inverter from the same chip: http://siliconpr0n.org/wiki/doku.php?id=cmos:start There are also some instructions on how to load these images into Inkscape at http://siliconpr0n.org/wiki/doku.php?id=tutorial:digitizing_with_inkscape

Monday, February 20, 2012

Silicon Pr0n (old) backup restored

I have restored the silicon pr0n wiki from an old backup so it should be less of a skeleton now. Find it here:
http://siliconpr0n.org/wiki/doku.php?id=start
It may be a bit rough around the edges still as a lot of things hadn't been polished up yet after the Wikispaces conversion

If you want to contribute send me a brief e-mail with your interests in IC RE and I'll create you an account.

Saturday, February 11, 2012

Tile stitch

Now that I have a microscope that can generate lots of imaging data stitching has become the bottleneck. I forget exactly how long but the large memory requirements of gigapixel (GP) sized images made it take a day or so to stitch on my desktop. I might have been fine with this except that something, I suspect enblend or one of its libraries, seems to generate a number of glitches when the images get very large. I've seen this on both 32 and 64 bit systems and should probably file a bug report... In any case, I wanted to reduce system requirements since I figured there was a way to do things better.

Recently I've been playing around with the Google maps API as an idea to use tiles instead of viewing the huge source images. I first played around and tiled a visual6502.org image, the MOS 6522 that you can find here. This is nice as people without powerful computers can view this large image at full detail. To be fair the jpg compression also significantly reduced its size although not to a point where significant quality was lost for my purposes. The tool to do this can be found here.

However, this still leaves the question of how to avoid creating the large intermediate images. After some thinking I came with the following:
  • nona (a "remapper": transforms source images to their location in the output image) will only output images that are in the cropped area. Note that it will still spend a small amount of time on each of the other images deciding if it needs to generate it
  • enblend (a "blender": resolves conflicts when two source images occupy the same area) output should only differ in areas where there's a potential conflict
  • There is no potential for conflict on areas where images are unique. In particular this is the edges and there is less conflict in the center 1/3 of my images since I have 1/3 overlap with neighbors
This allows the following algorithm.



Step 1: get an optimized .pto

You can get this from any source you want. I am using my pr0nstitch program (discussed in a previous post) which I then optimize for size and crop in Hugin. While the Hugin stage could probably be automated its at least doesn't take very long and gives me an idea of how well the optimize went before trying a full stitch.

For this example I'll show a smallish input image. When stitched with Hugin it looks like this:

As an aside, this is a MOS 6522 that I used HF to remove the passivisation and then ate out the metal. Then end result is that you can still see where the metal was (because there is still a lot of SiO2 leftover) while still seeing all of the bottom layers.

Heres a visual from Hugin of what the input looks like:

I think the color gradients are related to me using semi-polarized light on high quality but not strain free objectives (Mitutoyo plan apo 20X). On the bright side it makes the source image boundaries much more pronounced.

Step 2: pick the largest single panorama size you want to stitch


Ideally the supertile should be the largest size that enblend can fit into RAM (and is error free per the bugs I've had...). The software chooses 4X4 source image size by default (~2.5 X ~2.5 shown above) and has a command line option to customize.

Step 3: stitch the selected region


Remap (nona) and blend (enblend) to form a single large panorama image (a "supertile") that is a fraction of the entire output.


Step 4: generate tiles


Greedy generate all tiles that are "safe" following the criteria from the last bullet above. I assume that images around the full panorama are fully safe as well as any images that are more than a half image width in from the border. Add these to a closed list as other supertiles may be able to regenerate them.

In the visual the red crosshatched areas represent areas that are considered unsafe because they are too close to an area where the blending could vary across supertiles. The green boxed in area are all tiles that we can safely generate. Here are a few actual tiles from that full sized image upper left hand corner:






Step 5: repeat for other supertiles

Shift the supertile such that you can generate more tiles safely. This works out to roughly shifting it by the border width + a tile size. Only generate the tile if its not in the closed list.


The tool can be found here.


The first actual chip stitch I generated using this algorithm can be found here. There are a few stitching artifacts but I believe they are more related to bad optimization than the stitching process. I have been somewhat lazily always choosing the upper left hand image as the reference for position optimization. In several of my large stitches images get noticeably worse as you move away from this point. Additionally, there is a bug where I can lose a tile around the right and bottom. Presumably this isn't hard to fix as its probably something I need to just round up instead of down.

The performance improvement is also pretty good. I did several GP sized images and the stitch completes in about 3 hours. I haven't played with panotool's GPU mode to see if that results in any improvement. For reference my system has a 3 GHz Woodcrest dual core CPU (although I'm currently only using one) with 12 GB of RAM. I've been using a 10 GB enblend cache. On that note, I believe this algorithm could also be parallelized to one job per supertile without too much effort.

To be fair as part of this processed I also played around with caching options and such as I learned more about how the remapping and blending phase works. Things on the TODO list for next steps:
  • Fix the clipping bug
  • Start using a lens model
  • Try optimizing from a center anchor instead of a corner
  • Look into ways to improve the accuracy of the optimize step (ex: statistical deviations)
  • See what I'm losing by using jpg's over tif's / png's
Finally, my wiki Silicon Pr0n has been down for a while. Now that I have a job I decided to rent a VPS and get a domain name. The wiki is now at http://siliconpr0n.org/wiki/ This URL should now be stable regardless if the server blows up since I can always point it somewhere else. Additionally I have backups in place now. However, I'm still trying to recover some of the old data and it may have some (gaping) holes until I can get it back. I tended to post more material to that then this blog though so its a good resource to have back up.

EDIT:
For the heck of it I decided to figure out how to package this. Try it out at http://pypi.python.org/pypi/pr0ntools/1.0

Also I found that the anchor image for optimization is more important than I realized. A lot of my stitching artifacts appear to be due to my somewhat lazily choosing the upper left hand corner as the anchor which propagated a lot of errors. I'd still like to add a lens model though to see how that further improves error.

Thursday, December 15, 2011

CNC microscope mk2

This post will show my new imaging setup, what I was trying to accomplish in setting it up, and the design decisions I made to get it working.

A bit of history first. This is the first IC capable microscope I got some time on:


But it wasn't well suited for computer control and inverted microscopes are difficult to mount IC samples in. I also got ahold of a biological microscope that could view ICs using a strong halogen light from the side. It did however have room to mount these:


The concept which you can kinda see here:


The mechanics were kinda iffy and worked so-so but it did get me thinking. After I got some money and with a little help I was able to get a Unitron microscope. Looking back it wasn't a super high quality microscope (very old?) but it got me a lot of experience to figure out what I needed. When I was about to scrap it I decided to get a little more aggressive with it and try to retrofit it for CNC control. It turned into this:


Which was finally a working CNC microscope! Very crude but I guess it turned out pretty well for the money and effort I put into it.

And here is the new setup:


Which cost me about 10X as much as the previous setup but is closer to the sort of thing I wouldn't want to run into in a dark alley or fear that might become sentient. It is interesting to note that the first run of this used the motor drivers and motors that the original setup failed to really get working. I only bought the linear stages for the original setup so I suppose the second setup cost about 10X as the original as well. An interesting progression of what you get for logarithmically increasing cost. I don't plan on adding a new point to that curve anytime soon ;)


Objectives

I was looking for several things for this:
  • Mitutoyo objectives seem to be prized by many, wanted some to try out
  • DIC seems to give good results
Unfortunately both above are also very expensive. However, with some patience I managed to get both for at least a reasonable deal although neither was still cheap. I got a set of 5X, 10X, and 20X Mitutoyo objectives included with the microscope. They do have good optical quality and long working distance and so have been nice working with.

The DIC was a little trickier. I realized that the prisms aren't labeled very well and someone not very familiar with them might not know how to list them for maximum buck on eBay. So I kept an eye out for the two things that they might be attached to:
  • Objectives
  • Turrets
Objectives tend to be expensive and tend to be matched with DIC objectives meaning others find them as well. However, turrets are more of a long shot. Finally I got lucky and found this:



The whole assembly which I got for slightly more than a single prism sells for. Best of all they are nice Olympus Neo SPlan prisms as opposed to an older Neo prism. The set includes 10X, 20X, 50X, and 100X.

Unfortunately I didn't have any NIC objectives or polarizers. The real Olympus polarizers would easily cost me $300 for a pair surplus. However, I'm not sure how special the polarizers are or if you are really just paying for the mounts. So I bought a pair of polarizers for $8 shipped:

Other side:

Basically its 4 pieces:
  • Polaroid (coated I presume) glass
  • Aluminum case
  • Retaining ring (screws in to hold the glass in place), visible in first picture
  • Lose fitting outer ring, above writing in bottom picture
Unfortunately its too high as is. Fortunately I have a small rotary table which allows me to reduce its height as well as mill a cavity for it:


The section holding the lose fitting outer ring was milled out and it was discarded. This brings us to the device it will rest in. I found an old heatsink of the correct height and started shaping it a little closer:


Which was formed into this with the blank slider for comparison:


For several reasons I wanted the optic to be removable. The easiest way to do that tends to be to use a setscrew to hold it in place. Its a bad idea to put a metal setscrew directly against glass so I decided to use the aluminum case the polarizer came with to buffer the force. A setscrew holds the original polarizer case in the slider. The slider has a step in it so that the polarizer case can only be inserted from one side and holds things in place well. The optic is then inserted and the retaining ring holds it in place. It looks like this:


Which seems to have turned out pretty good. Fitting in the microscope:



And the matching polarizer is loosely sitting in the illuminator so that I can rotate it around:


I tried using a 20X Normarksi prism with a standard Neo SPlan 20X objective but it doesn't give you DIC so bit the bullet and bought a NIC rated one. I didn't get it at a super great price but wanted something to play with.

I also discovered that I had underestimated using polarized microscopy. You can get a number of really neat effects on semiconductors by using crossed polarizers. I think my cheap polarizers give a dark purple-blue color when crossed but I like blue so it turns out okay. I'm glad to have a reasonably high power lamp as this takes considerably more light than standard brightfield microscopy.

XY / linear stages hardware

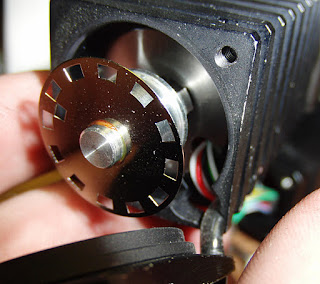

The core of the robotics section are two Micro-Controle / Klinger / Newport high precision stages. They were listed as being from a high precision milling machine or something. This could be the case as while most stages are direct drive motor to shaft these have a planetary gearbox:
This increase their torque (which I really don't need) but it also makes it easier to move smaller distances. I'm not sure what the actual precision of the stage is but the aggregate step size I get out of the system is about 110 nm. So far this has been far above anything i've needed but it may become more convenient as I move to 100X imaging.
For whatever reason they use variable reluctance motors which I'm unfortunately not as familiar with as stepper motors. I tried making a simple stepper like driver for it but it couldn't hold up under any reasonable load. I read some papers and ultimately decided it was going to be less work for me to adapt some stepper motors on it.
The two drive motors are two slightly mismatched NMB brand NEMA 17 motors. I selected NMB motors since I was hoping that they would use the same connectors as my NEMA 23 Sherline motors but no dice. Even so it has been really nice that the motors have plugs that allow me to quickly disconnect the wires. They are mounted to the stages via some cheap flexible shaft couplers. I had to make some shims to get the 1/8" (0.125") Klinger motor shafts to fit into the ~0.2 NEMA 17 shaft couplers. Note that I didn't remove the motor as it contained the sun gear but rather replaced the opto-encoder disc at the end:
I machined them out of some old steel standoffs by carefully turning them on a rotary table and using a 1/16" endmill to mill out the center. To be honest I was quite surprised I didn't break the endmill. The adapters would have worked really well except that they deform when clamped and so it wasn't a good idea to try to move them around. Things still work okay but I might want to try to make some fresh shims or order some brass rod for a more proper solution.
Robotics electronics
All three motors are driven by Precision Motion Controls stepper drivers. These are fed by a "USBIO" PIC based microcontroller board. Basically I hammer on some GPIOs through USB. On my Linux machine I was able to get some MHz but the Windows machine this runs on seems to be limited to about 500 kHz. I'm pretty sure the motors can move a lot faster than this but it would take more care in software to try to get velocity and acceleration matched well enough so that things don't slip. Since Windows XP isn't exactly an RTOS I'd be surprised if that could be made super reliable but possibly well enough for what I need.
Unfortunately while the USBIO board is powered off of a 5V USB line it uses 3.3V logic. Logical 1 is defined as > 3.5V on my motor units which was causing unstable control. To solve this I added a simple buffer chip powered off of the USBIO board's VCC breakout:
The buffer chip (a CD4069 or something, I forget which exactly) doesn't actually give near 5V out but its good enough for what I need. I couldn't find any industrial style (ie with screw terminal) voltage level converters but I assume they must exist. Its not a terribly complicated circuit board, maybe I'll make some to clean this up a little. I have some perf board laying around which would also probably do the job.

Control software
The software is descended from the original control software. However, its very different in that it performs control in realtime instead of generating g-code. Its at roughly the same location as the original software, I'll probably merge it into the original's location one dir up but until then you can find it here..
I tried a few different imaging libraries and eventually settled on the Python Imaging Library (PIL). Although I had used PIL before for image processing I didn't realize it could do image capture as well. It has mostly worked well but I have gotten truncated images on a few imaging run. I think it may have losely had to do with AmScope software fighting with my software and so I added a check to refuse to start a job if the AmScope software is running.
The USB device has a serial driver so no real magic there. I did write a wrapper class but I already had that from previous projects.
After a little thought I decided I wanted a GUI to make moving around more freestyle instead of entering coordinates at the command line. Most of my GUI experience is using Qt so PyQt seemed like a good choice. Its a "programmers GUI" in the respect that its a jumble of UI components without much thought to ergonomic / careful placement.

Camera

The old setup used a point and shoot with mixed results. It was nice that it could auto-focus but it was bad that it would sometimes focus poorly and that I couldn't decided what I wanted to focus on. So I decided to look around for a real microscope camera and found a AmScope MD1800 (8.1 MP USB) at a halfway decent price.

Originally I was using the camera through the eyepiece but this had several issues:
  • Tended to move around
  • Couldn't look through very easily
So I acquired a trinocular head which is where it rests today:
The trinocular head doesn't seem to fix it in place or seal it super well so I made a few crude enhancements. Maybe there is a better adapter I should be using? First, I put a rubber o-ring around the base to stop dust from getting in. Second, I put some rubber strips between the camera and the base and then zip-tied them on. This crudely fixes the camera in place while still providing some stress relief for things moving around.

I attempted to reverse engineer the camera driver to get it working on Linux and kind of got it working except that I haven't figured out how to sync frames. I'll see if I can post some of the data dumps here in case someone has an idea as I'd love to ditch Windows.


Focusing
On the old microscope the sample rested on a kinematic mirror mount (not shown) which allowed basic sample adjustment:
However, this was on a boom so it was difficult to adjust without shaking things around. However, I was able to compensate a little as the main reason that it was mounted that way was so that I had focus control from a precision Z stage. This allowed to compensate a little but didn't solve the fundamental problem. Also, the Z axis was kinda shaky and held in place by a rubber band to keep backlash down (the spectrometer it was scrapped from had the mirror weight holding it down). So for the second revision I tried to improve both of these focusing elements which I'll describe separately.
Active focusing (z axis)
I focused (haha) on this first since its what I used on the old setup. Z axis control is via a NEMA 23 motor with a timing belt coupled to the fine focus knob:
After taking the focus knob cover's off I noticed some threaded rod was sticking out:
Its probably M6 but I don't really know for sure. I had a timing pulley on a 1/4-20 bearing. This sounds like a really bad idea at first since the thread doesn't match and it would just slip around anyway. However, neither of these is hard to get around. 1/4-20 is very similar but not similar enough to mount directly on. Fortunately I had an M6 standoff that fits well on the microscope and that the 1/4-20 screws into pretty well too. Finally, I put a serrated washer between the pulley and the spacer to fix it in place.
Most of my pulleys are designed to fit NEMA 23 / 0.25" shafts which was part of the reason why I wanted to use a NEMA 23 motor. So, mounting that drive pulley was easy. I'm trying to avoid mounting the motor on the microscope in hopes of trying to reduce vibrations and so its currently mounted to the adjacent optics table via 1" 80/20 t-slot aluminum. I have to re-adjust it every time I move the course Z axis but its not difficult to adjust. I've considered several alternatives (attach with damping to microscope, rail mounted, etc) but haven't settled on something more permanent yet, in part because I'm not using this much as described next.
Finally, this has considerably more vibration than the XY motors which makes me less enthusiastic to use it. I'm not sure if its because the micro-stepping isn't adjusted properly on the NEMA 23 or just that it tends to move around more than the smaller NEMA 17 XY motors. I slowed it down a lot more than the XY motors so that its at a reasonable level but I'm pretty sure the mechanics could be improved.

Sample leveling
I also wanted to improve the basic angular control. It would have been nice to have this under computer control but, since its a one time (per sample or sometimes per multiple sample run) setup thing, its not a high priority.



Theory
This is how our system might look to an observer:
The line at the bottom represents the focal plan para-axial with the objective. The pivot is the bearing on which the kinematic mirror mount mirror holder rests. Turning the screw at the end raises or lowers the end of the plate in a single axis and effectively controls a single angle. We are only interested in the top of the sample and not the mirror holder that the sample rests on. I assume the sample is flat such that its surface forms a focal plane. The second line represents some adjustment of the axis screw to form a second focal plane.
Note that this model assumes that the XY plane is still parallel to the imaging plane. This is a non-trivial assumption since this difference is likely to be signifigant and result in requiring active Z focusing to get a good image. However, for my purposes the most important thing was to level out samples like packaged chips that may need significant adjustment. My stages are reasonably precise but I have yet to determine if I need to try to level them out better. The easiest way to do that is probably to insert shims or play around with how tight I set it in. The bottom stage only has 1 out of 4 screws installed and is probably the largest source of imperfections. I have been considering either drilling out the original plate or creating a new one so that it can be secured more regularly.
In this system angles are relatively small, hopefully no more than a few degrees. This allows us to make a small angle approximation so that sin(x) ~= x to simplify the math. This gives a triangle:

The following ar proportional:
a / a' : (t + t') / t' : (z + z') / z'
a / a' = (z + z') / z'
We know a, a', and z and want to find z'
z' a / a' = z + z'
z'( a / a' - 1) = z
z' = z / ( a / a' - 1)
Taking a few simple cases to get a warm fuzzy feeling this is correct. The two simple cases are that the first angle was correct and that the second angle was correct.

If the first angle was correct:
a = 0
z' = z / (0 / a' - 1) = z / (0 - 1) = -z
That is we have to go back to where we were originally

If the second angle was correct:
a' = 0
z' = z / ( a / 0 - 1) = z / (inf - 1) = z / inf = 0
That is we stay where we are.

Practice
In practice this above turns out to be too cumbersome to do by hand. If I had computer controlled tilt capabilities (such as with a Newport / New Focus 8071) these formulas might be more directly useful. I tried to apply them and the time to whip out a calculator and try to turn the knobs "just right" doesn't work well enough.
However, you can observe that if you iteratively do the following:
  • Focus on a point close to the pivot, ideally the edge of the chip is on it
  • Move to a distant point on a single axis, ideally the other edge of the chip
  • Adjust the screw until in focus
  • Move back to original location. If its still sufficiently focused you are done with this axis
  • Repeat for the other axis
I use a Newport MM2 as seen above.  The sample rests on the back of the unit and the front where a mirror would usually go is against the stage.  I put a piece of paper down so that if a sample falls it doesn't fall through the stage into the abyss.  To avoid drilling and other alignment I simply clamped it down using appropriately sized spacers.  Additionally, for large samples like the 486DX seen above, I use Blue-Tak to keep them from moving on long runs.
I'm thinking of marking some guidelines on the stage to make placing chips at the pivot point easier as this is theoretically just a single pass when that's the case. If they are not at the origin it will take more passes but typically not more than 4. For a large chip such as some GPUs I've been imaging my stages are slow enough that it can take 2 minutes to reach the other side. So, for these chips its taking about 20 minutes to level. Its not so bad though since the manual interaction doesn't take very long.  (update: I did scribe some lines, was a very good idea and chip placement is much quicker now)
Ultimately this seems sufficient without any active Z control. On this setup the stages seem para-axial enough to the focal plane that I don't require any active focusing control. Since using an active Z axis still doesn't eliminate uneven focusing across an image this method is generally preferable. Currently the main advantage of the active Z control, although I'm not using it much anymore, is that it reduces setup time since it only requires collecting three or four points in a fairly small timeframe.
Next steps
I fed some images into the stitching software I was using before and they come out a lot better because of the closer to planar setup. I played briefly with constructing a more proper lens model and it would be a good idea to give that another go.
I'd like to share the chip images but I'm realizing they more or less take up obscene amounts of bandwidth and storage. I briefly played around with a Google maps style display but didn't pursue it very heavily as it may at least cut down bandwidth and relieve the burden of needing to open huge image files.
I played around with some focus stacking but wasn't terribly impressed. I need to see if I can find some more fine tuned options in panotools or look into alternative software. This is a real problem at higher resolutions (ex: 50X) on large chips where there may be many layers. If I only store the final focus stacked images I don't lose much disk space or imaging time and the pictures in theory can look a lot better.
Somewhat unrelated and on my TODO list is to finish digitizing the MOS 6522. I put a lot of work into getting a better imaging platform and I'm now getting pretty satisfied that I do. I want to focus future work on acquiring data and automating analysis. My first goal is to try to find techniques for automatically extracting the metal layer. Among image processing techniques I'm thinking of trying to use IR light since everything else should be pretty transparent to it. However, there are a large number of minor difficulties to get this to work so I may try visible techniques first. One thing in particular is that metal tends to saturate the video sensor without any polarization which I could probably use to my advantage.
I'd like to be able to rotate samples easier and install my larger and flat kinematic stage. The easiest way for me to do that is to remove the bottom illumination lamp housing / stand and replace it with my Newport rotary stage and a riser plate. I'm looking to see if I can get a precision lab jack like a Newport 281 but they look like they cost more than I want to spend. However, I've already had some commercial interest in some people wanting to use this system for wafer failure analysis imaging and so it might be worth the investment as it would allow me to image wafers a lot easier.
Finally, I'd like to improve the motor mounts so they are wiggle free. This shouldn't be too hard as I either just need to spend some time on a lathe (I don't have one but I have a Tech Shop membership) or to order some telescoping brass tubing and fit as needed. While this doesn't seem to effect imaging too much I'm sure its not ideal on the motors and probably causes friction that could effect repeatability, especially if I want to raise speeds.
